Description

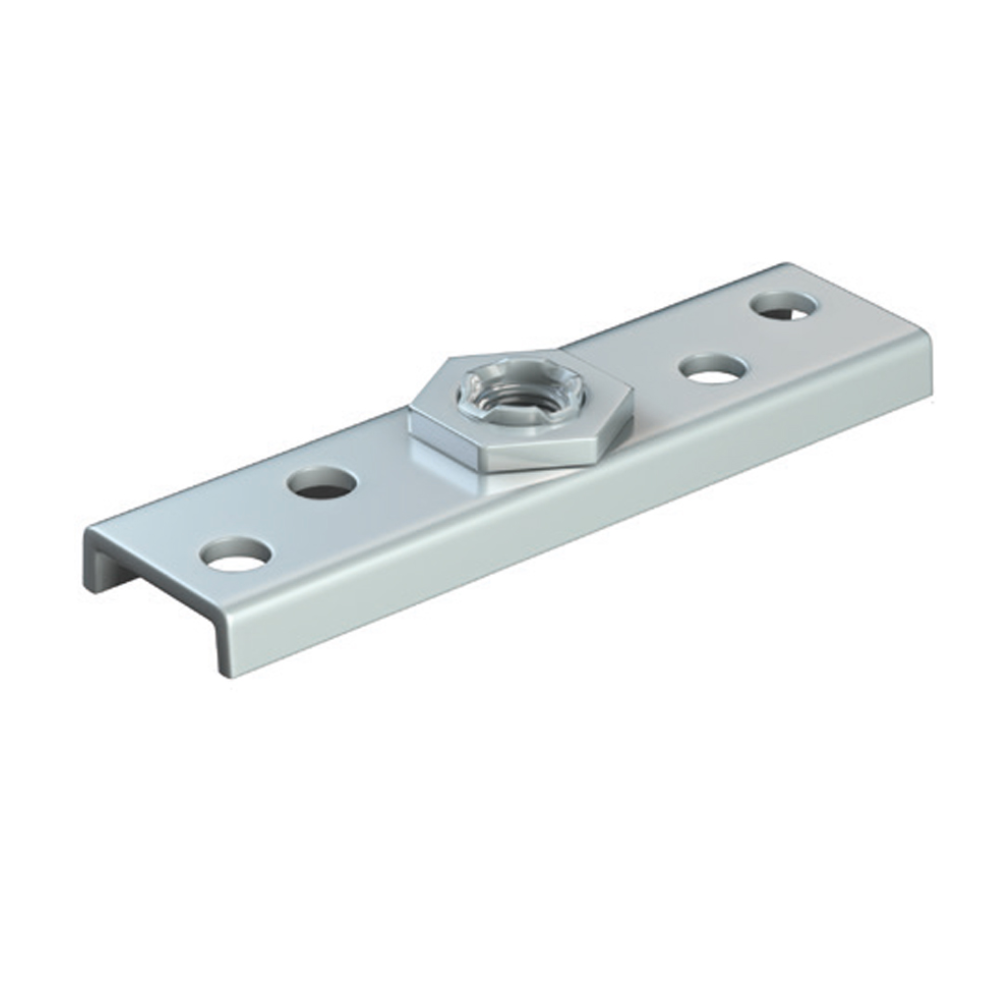

The OMGE Art. 57 is a specialized steel suspension plate designed to provide a high-performance link between a sliding door panel and its overhead carriage system. Crafted in Italy to rigorous engineering standards, this plate is a fundamental component for achieving the fluid, effortless motion required in modern architectural and commercial sliding applications.
The defining characteristic of the Art. 57 is its rotating suspension mechanism. By allowing the central M12 mounting point to rotate, the plate compensates for minor misalignments in the track or the door panel itself. This “self-adjusting” quality reduces friction on the roller bearings and prevents the door from “chattering” or sticking, resulting in a whisper-quiet operation.

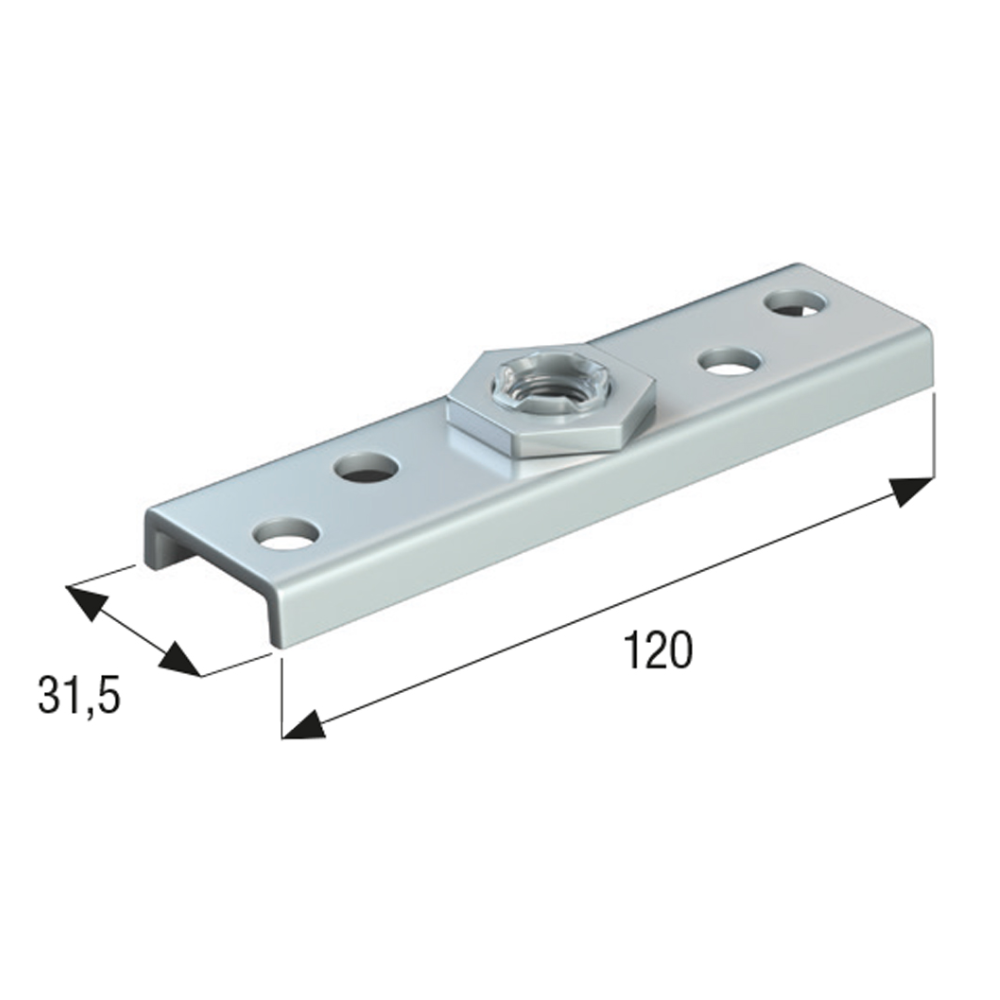

Measuring 120mm in length and 31.5mm in width, the plate features a low-profile U-shaped cross-section that adds significant rigid strength without requiring deep mortising into the door. It is specifically recommended for door thicknesses of 32mm and above, making it versatile enough for solid wood interior doors, heavy office partitions, and light industrial panels.
Constructed from heavy-duty galvanized steel, the Art. 57 is built to withstand the rigors of high-frequency use. The four-point mounting system ensures that the weight of the door is not concentrated on a single spot, thereby protecting the integrity of the door material. Whether you are installing a high-end residential barn door or a professional commercial partition, the OMGE Art. 57 provides the mechanical precision and durability needed for a flawless sliding experience.
Technical Specifications
- Art Number: 57
- Material: High-Strength Zinc-Plated Steel
- Plate Dimensions: 120mm (L) x 31.5mm (W)
- Pin Compatibility: M12 Threaded Pin
- Minimum Door Thickness: 32mm
- Mounting: Top-edge fixing with 4 screw points
